Double Angled Triple Glazed Units

We offer Toughened Triple Glazed units for use in Windows and Doors. Simply enter the dimensions and select the options you require to place an order including delivery to your door.

Looking for a different Shape?


Order within Clock Icon Counter Loading for the earliest selectable delivery dates.

Measurements

Firstly, enter your measurements of this shape below in Millimetres:

Width (A) mm
Height (B) mm
Height (C) mm
Height (D) mm
Distance (E) mm
Distance (F) mm

Next, select the thickness of the Sealed Unit :

Thickness
Quantity

Glass

From here, select the Glass Types you require. Once an option has been selected, a preview of the Glass will appear below. The sealed unit will arrive with a label showing which way around it should be fitted during installation.

Pane 1 Glass Type
Pane 2 Glass Type
Pane 3 Glass Type

Features

Select the spacer bar type you require. These are the internally visible border of the Sealed unit and should be specified to match any exisiting windows:

Spacer Bar

Next, select the Gas Type the sealed unit should internally filled with to improve Thermal Effeciency:

Gas Type

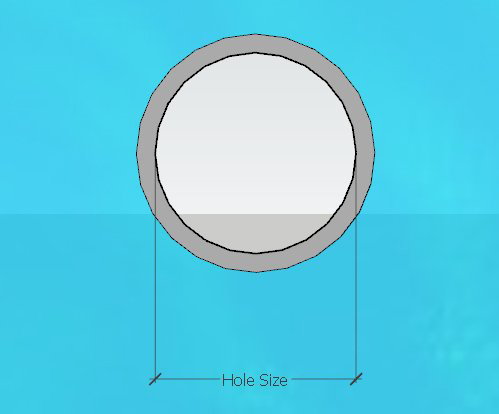

Circular Vent Hole

Select whether or not this Unit requires a Vent Hole cutout:

(Suitable for use with Cat Flaps featuring Microchip Sensors).

Required

Extras

Here you can select optional extras available for this product type.

Plastic Packers

These plastic packers can make the shower installation easier by allowing for consistent gapping while the Glass and Hardware is being fixed into position, after which these are removed.

Quantity

Delivery

Here you can choose a delivery type from the available options below.

Fragilistics

Fragilistics company logo

Features of this Delivery type:

  • UK Mainland Only
  • Email Notifications
  • Fragilistics Phone you to co-ordinate the delivery on the working day prior to delivery
  • Phone Call an hour ahead of Delivery
  • Selectable Delivery Date range based on Postcode
  • No packaging is used

price inc VAT* (price Total inc VAT and Delivery)

*Postcode must be selected for pricing confirmation.

Packaged and Couriered

icon showing an open cardboard box

Features of this Delivery type:

  • UK Mainland Only
  • Email Notifications
  • Selectable Delivery Date
  • Premium Timed Services available at time of order
  • Text Notification with Hour Slot Provided
  • All items are packed in to Boxes

No Additional Charge* (price Total inc VAT and Delivery)

*Based on Express Delivery, Timed Services incur an additional charge.


*Available Delivery date shown based on the Courier Delivery Service being selected.

Info on this Product

Triple Glazed Units provide the best possible energy efficiency thanks to the three panes of glass, which can be further improved by opting for Gas Filling, utilizing the two spaces created between the three panes of glass.

Our website calculates available delivery dates based on the amount of time required to manufacture your order.

Deliveries take place using third party courier delivery services. Once we have completed manufacturing your order, we dispatch your order in one of the following ways depending on the option you have selected at the Delivery stage:

Tuffnells (Boxed)

Orders leave us on the working day prior to your selected delivery date in suitable glass packaging.

Tracking information along with contact details for the courier company are provided on the evening that the order is dispatched. Once an order has been dispatched and is in the courier's possession, any changes to delivery arrangements should be made with them directly.

If you are unable to be present during delivery and the item ordered does not require additional help for unloading (this is prompted and confirmed during the order process), a note for the courier can be left in both the Shopping Cart message box and as a note on the Door of the delivery address.

Tuffnells Service Options

  • 8am to 6pm - This is an Economy service and results in the courier delivering the order at an unspecified time between 8am and 6pm depending on delivery route and work load. On the day of delivery this time still cannot be specified by Tuffnells.
  • 12:00 Express - This is a Premium service that ensures the courier will make the delivery before 12:00 Midday.
  • 10:30 Express - This is a Premium service that ensures the courier will make the delivery before 10:30am.
  • 9:30 Express - This is a Premium service that ensures the courier will make the delivery before 9:30am.

Fragilistics

Fragilistics are a specialist delivery company of fragile goods, making them an ideal Glass courier.

Once Fragilistics have collected your order from us, they will contact you to co-ordinate your delivery with you.

Maximum Limits of this Delivery method:

  • Maximum Glass Thickness : 7mm
  • Maximum Glass Weight : 40kg
  • Maximum Glass Dimensions : 2700mm x 1580mm

Our website confirms whether the item you are specifying is beyond any of these limits and disables the delivery option should that be the case.

Orders delivered by Fragilistics do not require packaging as specialist glass delivery vehicles are used.

Q. Which Thickness do i need?

A. The thickness you require depends on the frame the glass is intended to be fitted in to. In order to determine this size, either the original glass (in the case of replacements) or frame gap itself can be measured.

Q. What is "Opti-White" glass?

A. Opti-White, or Low Iron glass as it is also known is the clearest type of glass available. When viewed from the edge the glass appears to be a light blue colour in comparison to Clear glass which appears green.

Q. What is "Softcoat" and "K" glass?

A. Softcoat / K Glass refers to a coating that has been applied to the glass surface - internal of a sealed unit - which improves the energy efficiency of the window.

Q. Is the Glass Toughened?

A. All of our Sealed Units are toughened as standard. The only exception to this is when the size of the glass falls below 300mm x 300mm.

Q. Are all of the edges safe?

A. Yes, all of our sealed units feature an edge that has a foil tape to all sides, allowing for safer handling. Care must be exercised at all times when handling glass whiile wearing the appropriate PPE.

Q. Which Gas Type do i need?

A. Gas Filled units are more energy effiecient than non filled units. The following colourless Gas Types can be selected:

Krypton - This is option provides the greatest level of energy efficiency

Argon - This is option provides a reasonable level of energy efficiency at a more affordable cost.

Q. I require glass made to an irregular shape, how can i order this?

A. For more complex shapes, the best method is to produce a template in order for us to replicate the design in glass. For more information on this, see our Glass to Template page:
